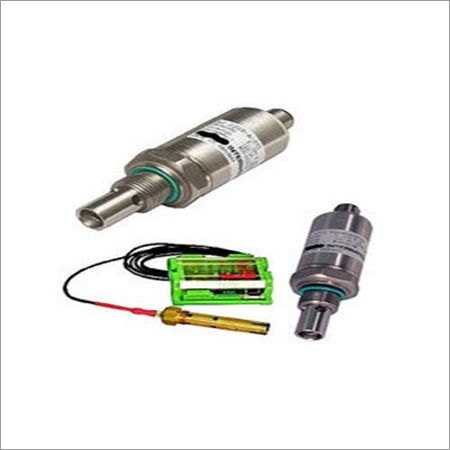

Moisture Sensor

Moisture Sensor
Moisture Sensor
Product Code : PC-23
Product Description
We are instrumental in providing to our valuable customers premium quality Moisture Sensor. This is manufactured from high quality material and latest technology in accordance with set parameters of the arena keeping in mind varied submitted needs of the customers. Thus, we are ranked as a famous Supplier and Trader. Spaced out from this, our customers can avail this Moisture Sensor at most affordable prices in varied sizes and specifications. Salient features and other details are listed below:


  • Body: cast stainless steel (ANC3B 18/8 SS)
  • End cap: stainless steel (AISI 316)
  • Faceplate: alumina ceramic
  • Range of moisture typically 0-20% for construction materials
  • Penetration approximately 75-100 mm dependent on material
  • Power supply +15 Vdc to +30 VDC 3 watts max
  • Operating temperature: 0-60°C
  • Refresh rate outputs are updated approximately 25 times per second
  • Analogue output configurable 0-20 mA or 4-20 mA current loop source. For 0-10 VDC output an external 500 R load resistor should be connected across the analogue output at the control system
  • Digital communications opto-isolated RS485 2 wire port
  • Applications sand & cement & other construction aggregates


  • Noted quality
  • Reasonable price
  • Highly demanded
  • Quality material
